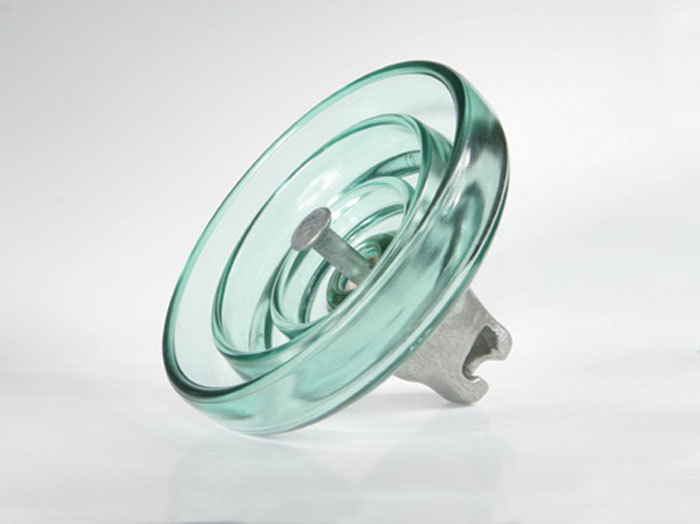

Cap and Pin Type Anti-Fog Profile Toughened Glass Insulators U70BLP

Mechanical Values
Mechanical Failing Load: 70kN

Electrical Values
Wet Power-frequency Withstand Voltage: 50kV
Dry Power-frequency Withstand Voltage: 85kV
Dry Lightning Impulse Withstand Voltage: 125kV
Puncture Withstand Voltage: 130kV

Radio Influence Voltage
Test Voltage RMS to Ground: 10kV
Maximum RIV at 1000 kHz: 50μV

Corona Extinction Voltage, Pin/Cap: 18/22kV
Power Frequency Arc: 0.12s/20kA

Packing
Net Weight: 5.3kg
